RR-CirKits, Inc.
Specializing in Affordable Electronics for Model Railroads
Product Descriptions and Factory Direct Prices: (Summer 2018)

To Order

For NMRA Members group discount, use 4+ quantity pricing. Please include your membership info. Call for information on club discounts.

Special Order Only These discontinued or limited availability products are no longer recommended for new installations. May have limited quantities availability to support existing users, or require out of production or special order components subject to a minimum order requirement.

NMRA LCC®:

Item #
Description
MSRP
1-3
4+
LCC Power-Point
Power-Point
LCC Power-Point ties together 2 LCC jacks, a Traffic Monitor, and a power supply. Create a powered LCC bus for simple wiring by powering your LCC Nodes over the cable. The LCC Power-Point supplies 1/2A to each LCC CAN Bus cable PS-S-15-1200 universal switching power supply is included.  (Terminator and CAN bus cable shown are not included) Additional Power-Point units may be added as required by your system's power requirements.
$29.95 $26.96
$25.46
LCC Repeater
LCC Repeater
LCC Repeater. Bit level repeater connects two LCC ® CAN bus segments. Quad RJ45 connectors for dual LCC ® CAN bus loop through connections. Includes a CAN bus data monitor LED for network trouble shooting. 2 LED display. Small package size. Just 2-1/2" x 3-1/2" x 1". (including mounting flanges) 600 ma power supplied to each LCC ® CAN bus segment. 15VDC 1.2 Amp Universal Switching Power Supply included.
$64.95 $58.46 $55.21
LCC Terminator Pair
LCC-Terminator

NMRA CAN bus LCC® Termination Pair. May be used to provide the required termination at each end of the CAN bus LCC®  Balanced CAN termination provides the best noise rejection. Includes CAN bus Power Indicator and CAN bus data monitor for easy network cable trouble shooting.

$15.00 per pair
$13.50 pair
$12.75 pair
LCC Buffer-USB
LCC Buffer-USB image
NMRA CAN bus LCC® to USB interface.  2,500 Volt Digital isolation between CAN bus LCC® and USB port.Type B USB connector for PC connection. Dual RJ45 connectors for easy LCC® loop through connections. 4 LEDs display status. (Ready, Power, Transmit, and Receive) Small package size. Just 1-1/2" x 2-1/4" x ¾". Ready to run unit includes USB cable. – Nothing extra to purchase. Standard 125,000 Baud CAN bus LCC® interface speed. – No jumpers or switches to set. Buffered inputs and outputs for full speed error free data transmission. Powered directly from LCC bus connections* and USB port. *Note: Requires a powered LCC bus. [10 ma. bus load] Simplify your LCC configuration and/or use a PC based CTC. Compatible with JMRI.
$69.95 $62.96 $59.46
LCC Starter Kit
LCC Buffer-USB
LCC Power-Point
2 ea. LCC Terminator
LCC Starter Kit Introductory price for a LCC Buffer-USB, a Power-Point, 2 Terminators, includes 1' cable.
$99.95
$89.96
$84.96
Tower LCC
Tower-LCC image
16 Line  Input/Output node for NMRA CAN bus LCC®. Logic level interface compatible with other standard RR-CirKits I/O modules. Boot Loader for user installable firmware upgrades. Includes powerful internal Logic Elements. Also compatible with JMRI. Small package size. Just 1-¾" x 3-1/4" x 5/8". POC (Powered Over CAN) LCC® connections*. *Note: Requires a powered LCC bus. [20 ma. bus load] (plus any I/O load current such as LEDs) Manual $69.95 $62.96 $59.46
Signal LCC-S
Signal LCC Image
16 Led drivers plus 8 line Input/Output node for NMRA CAN bus LCC®. Logic level I/O port compatible with other standard RR-CirKits I/O modules. Boot Loader for user installable firmware upgrades. Includes powerful internal Logic Elements. Compatible with JMRI. Small package size. Just 1-¾" x 3-1/4" x 5/8". POC (Powered Over CAN) LCC® connections*. *Note: Requires a powered LCC bus. [20 ma. bus load] (plus any I/O load current such as LEDs) Miniture Screw Terminals for LED connections draft Manual
$73.95
$66.56
$62.86
Signal LCC-P Signal LCC -P
16 Led drivers plus 8 line Input/Output node for NMRA CAN bus LCC®. Logic level I/O port compatible with other standard RR-CirKits I/O modules. Boot Loader for user installable firmware upgrades. Includes powerful internal Logic Elements. Compatible with JMRI. Small package size. Just 1-¾" x 3-1/4" x 5/8". POC (Powered Over CAN) LCC® connections*. *Note: Requires a powered LCC bus. [20 ma. bus load] (plus any I/O load current such as LEDs) Dual 10 pin headers for LED connections draft Manual $73.95 $66.56 $62.86


WATCH THIS SPACE FOR MORE LCC PRODUCTS!




Input/Output Modules for Tower LCC, Signal LCC, and other interface device Aux ports:

Item #
Description
MSRP
1-3
4+
Special Order OnlyBOD-1

BOD-1
(Block Occupancy Detector-1) This inexpensive self contained diode drop detector works with both analog DC and DCC layouts. It has dual opto isolator outputs which allow it to drive virtually any signal logic designs, and of course it may be used as an input to our TC-64 and LNCP LocoNet interfaces. The BOD-1 uses 3A Schottky diodes for minimal voltage drop across this unit when compared to other diode drop style detectors. This little (1" x 2")  detector is much too small to fit into the 3TK-2 snap track mounts. Manual
$call
BOD4
BOD4
(Block Occupancy Detector-4)  This board operates as a DCC occupancy detector for 4 blocks using remote CT coils. It outputs logic levels, and has a RR-CirKits standard ribbon connector interface. The "Power-Lok" feature optionally monitors the DCC bus power. A power failure latches the detection status of each block until power is restored and re-stabilized. There are also 4 general purpose I/O connections fed through to the driver board. Manual $23.30 $20.97 $19.81
BOD4-CP
BOD4-CP (Block Occupancy Detector-4)  This board operates as a DCC occupancy detector for 4 blocks using remote CT coils. It outputs logic levels, and has a RR-CirKits standard ribbon connector interface. The "Power-Lok" feature optionally monitors the DCC bus power. A power failure latches the detection status of each block until power is restored and re-stabilized. The CP version also includes dual turnout drivers. When used with the Tower LCC or Signal LCC boards there are also 4 general purpose I/O connections. These are not available when used with older LocoNet based devices.  Manual $30.00 $27.00 $25.50

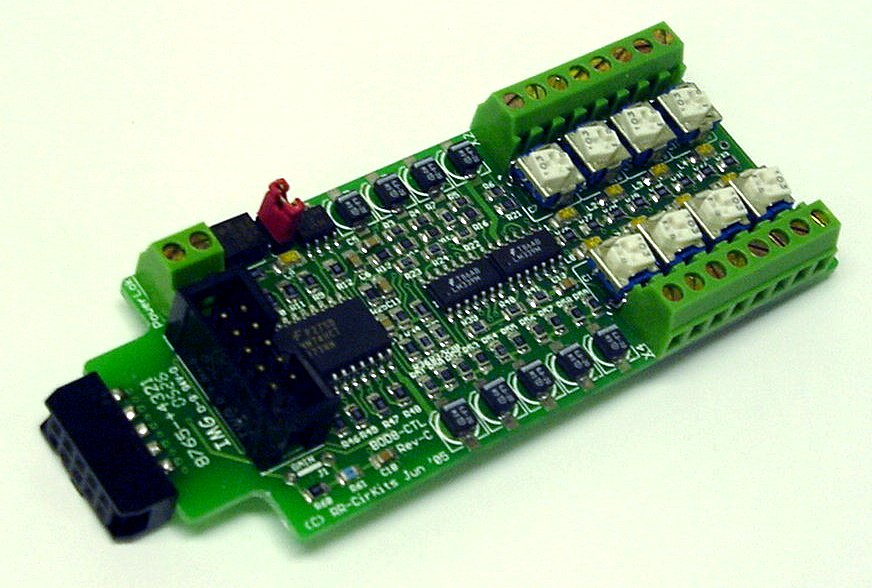

BOD-8
(Block Occupancy Detector-8)  This board operates as a DCC occupancy detector for 8 blocks using remote CT coils. It outputs logic levels, and has a RR-CirKits standard ribbon connector interface. The "Power-Lok" feature monitors the DCC bus power. A power failure latches the detection status of each block until power is restored and re-stabilized. Manual
$41.65
$37.49
$35.40
CT-Coil-Set-8
CT-8 Set of 8 CT (Current Transformer) coils for BOD-8. These 100:1 toroid coils sense the track current on leads passing through the hole in the middle of the coil. They connect to the BOD-8 with twisted pair cable such as CAT-3 or CAT-5 network cable. (up to 4 coils per cable)
$16.00
$14.40
$13.60
CT-Coil-Set-6
CT-6 Set of 6 CT (Current Transformer) coils for LNCP. $12.00 $10.80 $10.20
CT-Coil-Set-4 CT-4 Set of 4 CT (Current Transformer) coils for BOD4 or BOD4-CP. $8.00 $7.20 $6.80
CT-Coil CT-1 Single CT (Current Transformer) coil. $2.50 $2.25 $2.13
FOB-A
(Fan Out Board, Direct Drive) This board is specifically designed to direct drive eight LED's from a single RR-CirKits port. It includes on board locations for current limiting resistors and jumpers to select common anode or common cathode connections. No extra hardware is required at each signal head. It may also be used to simplify connections to the 10 wire ribbon cables for multiple input connections. Quick release compression connectors simplify repeated connection of #18 and smaller wires. Manual.
$11.70
$10.53
$9.95
FOB-C
(Fan Out Board, Dual Direct) This board is specifically designed to terminate the dual cable, eight stall motor, connections from a single SMD-8 board. It includes on board jumpers to select common positive or common negative for optional single ended connections. This board may also serve as a convienient connection point for two flat ribbon cables used as inputs to the RR-CirKits ports. Quick release compression connectors simplify repeated connection of #18 and smaller wires.Manual.
$16.42
$14.78
$13.96
BOB-S BOB-S
(Break Out Board, Screw Terminal) This board is designed to break out the 10 pin IDC ribbon cables into minature screw terminals for easy connections.  (0.4" wide by 2.5" long)
$6.95 $6.26 $5.91
I/O Test
I/O Test
(I/O Test Board) This board contains 8 push button switches and 8 LED pairs. It is designed to quickly test the I/O ports on any of our boards such as the Tower LCC, Mark II, various of the WorkMan series SSB boards, and our LCC I/O nodes. It may be configured to test Common Anode or Common Cathode connections. (by jumper settings)
$8.95
$8.06 $7.61
OIB-8
(Opto Isolator Board - 8 line) This board is specifically designed to isolate AC or DC voltages from the RR-CirKits style inputs. This version of the board includes internal current sources. Manual.
$24.50
$22.05
$20.83
RB-4
RB-4
Relay Board - 4 is a Quad 10A SPDT relay board with logic level drivers. It is suitable for use with TC Mark II, TowerMan, Tower LCC, or other logic output devices. It requires 12V auxilary power to supply the relay coils. Auxilary power is optically isolated from the logic inputs for double isolation. LED indicators for each relay make it easy to monitor activity.

Includes dual ribbon connectors with offset lines to allow connection as output 1-4, or output 5-8, of the Tower LCC, TowerMan, or other driver.

Download the RB-4 Manual.

$30.25 $27.23 $25.71

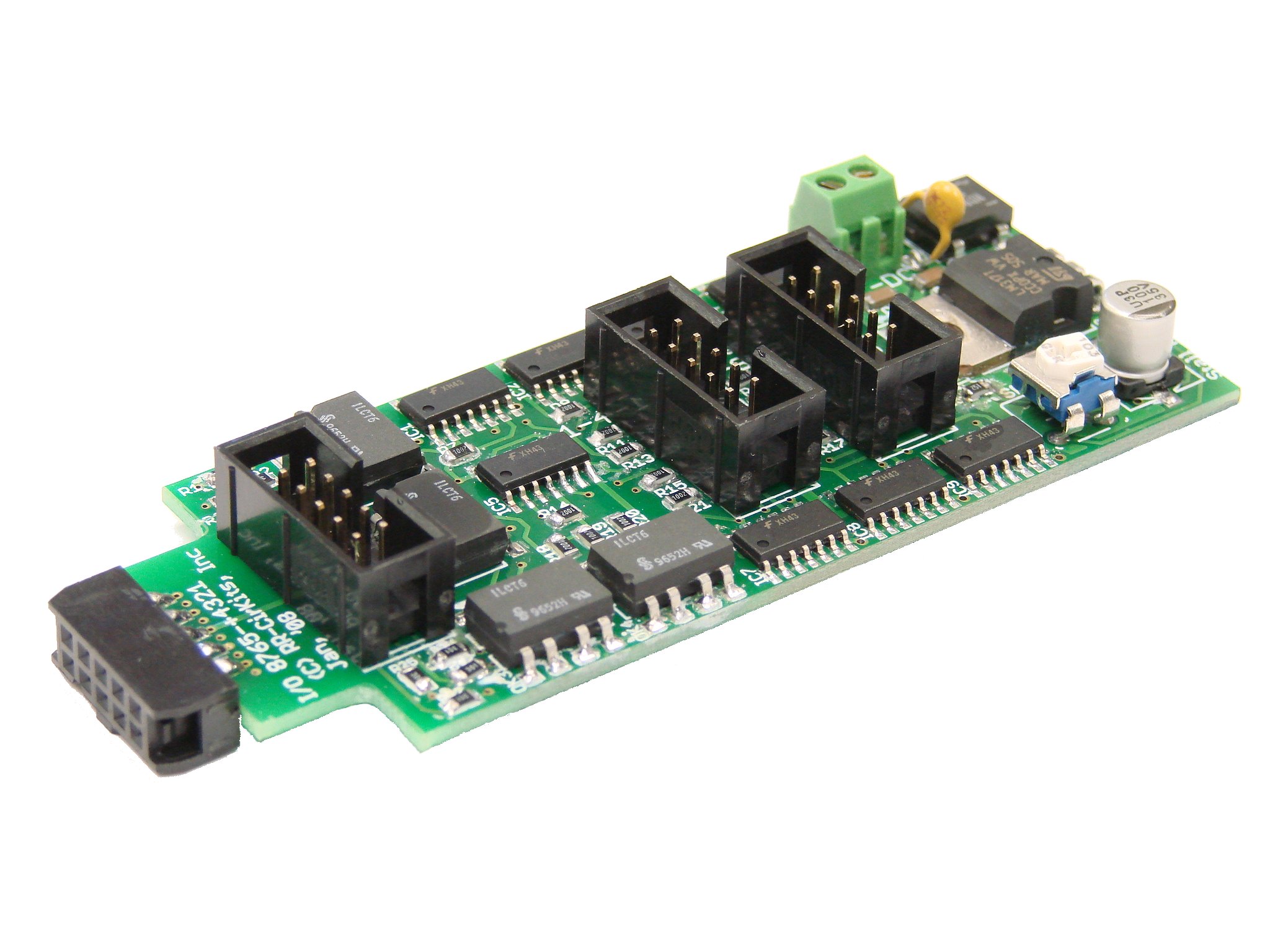

SMD-8
(Stall Motor Driver) This 8 output, optically isolated, low current "H" bridge driver is designed for control of 8 stall motor switch machines. (E.g. Tortoises®) It can drive up to 100ma. per line, speed regulated output 4 to 12VDC. (PTC fuse limited to 200ma total per board for safety). Manual.
$35.15
$31.64

$29.88

SCSD-8
(Single Coil Solenoid Driver) This 8 line, optically isolated, single ended, high current, high voltage DC driver can drive up to 1A continous per line at up to 30VDC. When used with custom Tower LCC settings and a CD power supply this board will drive 4 dual-coil solenoid switch machines. (PTC fuse limited to 2-3A total per board for safety) Manual.
$39.98
$35.98

$33.98

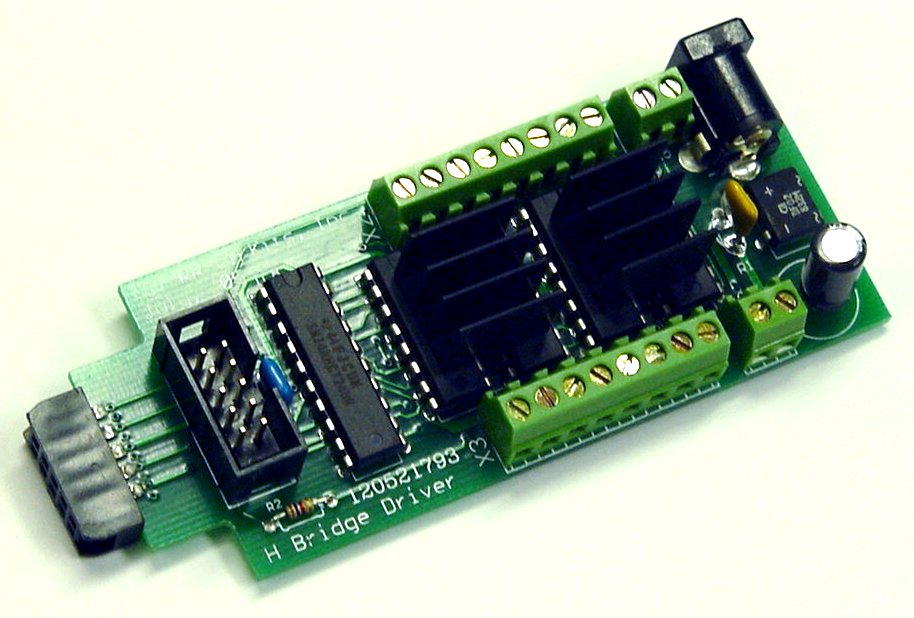

DCDB-8
Special Order Only
(DC 'H' Bridge Driver)  Normally operates as eight independent "H" bridge motor drivers. It outputs medium current DC at whatever voltage is supplied to the board via an external connector. (28VDC maximum) Each output line is rated at 1/4 amp continuous, 1 amp momentary. Manual.
$Call

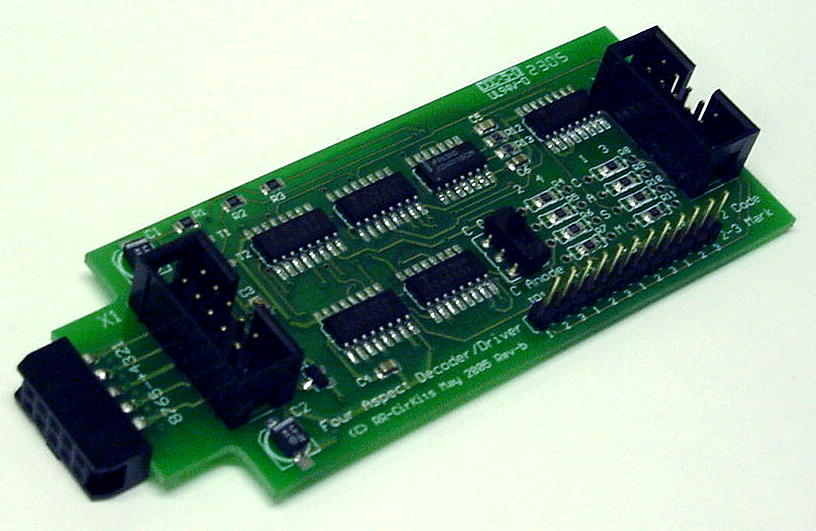

4ASD-4
Special Order Only
(4 Aspect Signal Driver Rev-b) This board is specifically designed to drive simply wired 3-4 aspect position signals utilizing 3 yellow LED's in series for each position by providing 9V to the internal dropping resistors. Multiplexed outputs allow for direct drive of four 3 or 4 aspect signal heads mounted along a single 10 wire cable. Use FOB-B at signal heads for easy connections. Manual.
$Call

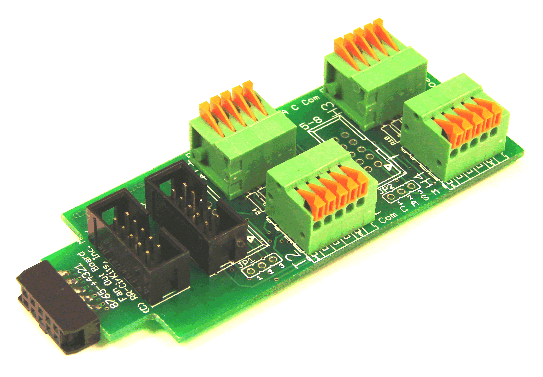

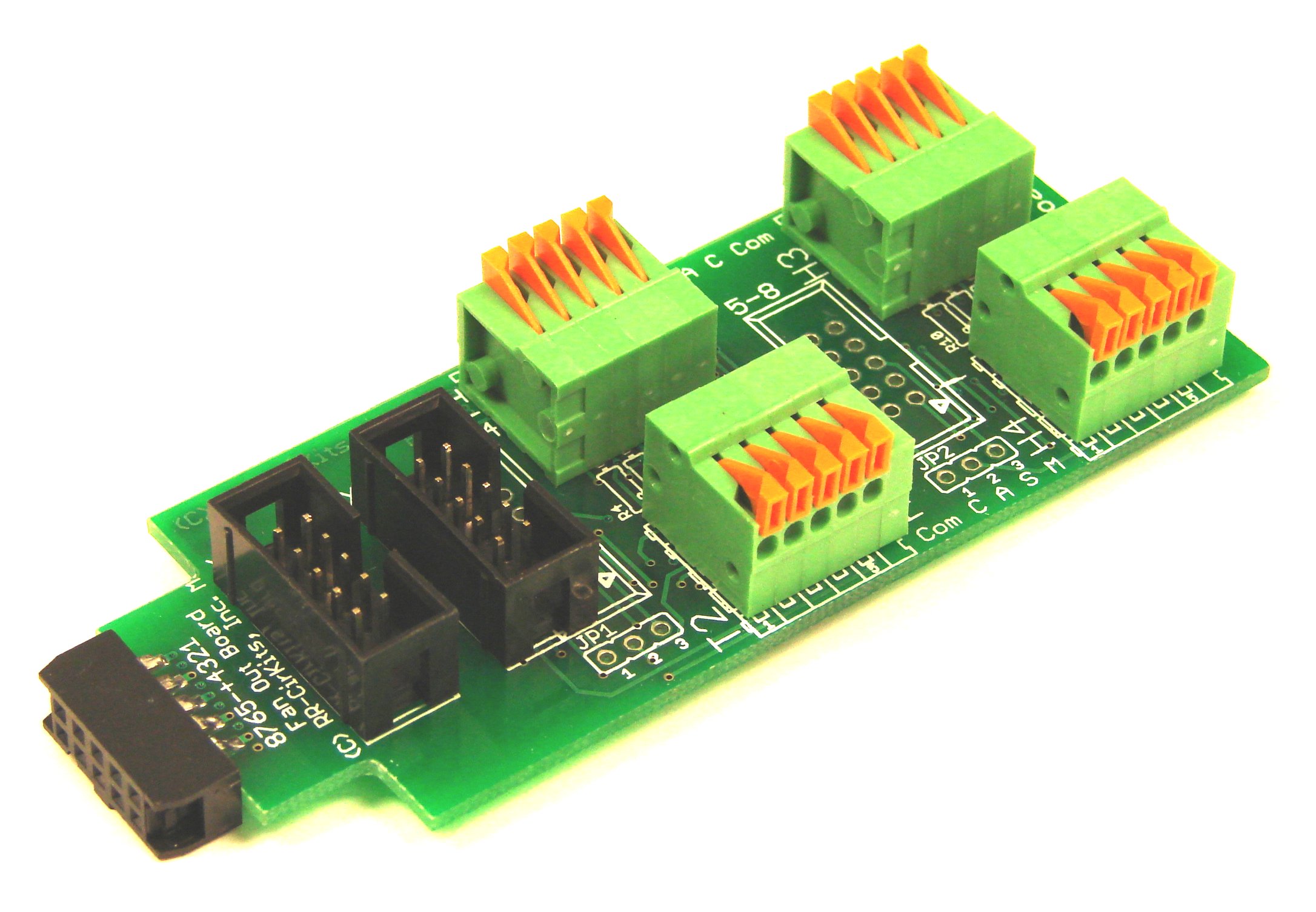

FOB-B
Special Order Only
(Fan Out Board, Signal Demultiplexor) This board is specifically designed to connect four signal heads from a single 4ASD-4 board cable. No extra hardware is required at each signal head.This board is especially useful to eliminate soldering when your signals terminate in fine wire or with difficult under-layout access. Quick release compression connectors simplify repeated connection of #18 and smaller wires. Manual.
$call

SDB-4
Special Order Only
(Searchlight Driver Board) This 4 output board is specifically designed to direct drive four aspect signals utilizing single bi-polar or three wire LED's and includes color balance controls for each of four signal heads mounted along a single 10 wire cable. No extra hardware is required at each signal head. Manual.
$Call


LocoBuffer-USB:

Item #
Description
MSRP
1-3
4+

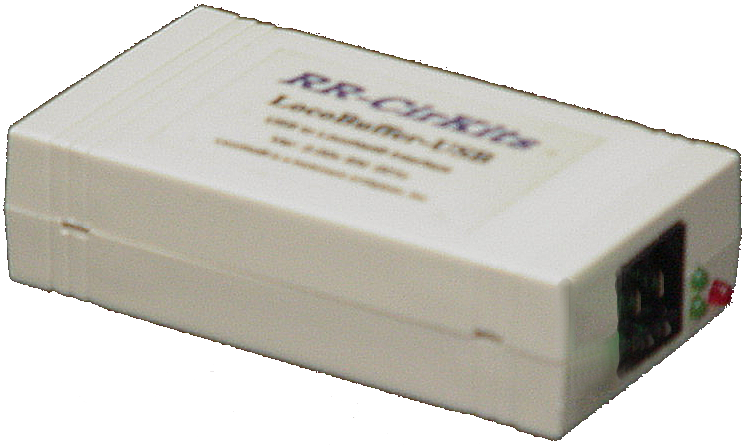

LB-USB
LocoBuffer-USB Rev-n

Buffered LocoNet® to USB Interface unit. Includes USB and LocoNet® cables, driver disk, and manual.

$73.45
$66.11
$62.43
UN8-BE

USB to serial Interface unit. Includes driver disk. Well suited for interfacing NCE command station to USB.This unit does not require any modifications to the command station for proper attachment. Also useful for other serial devices.

$27.95
$25.16
$23.76

LocoNet (and SSB) Detection and Signaling:

Item #
Description
MSRP
1-3
4+

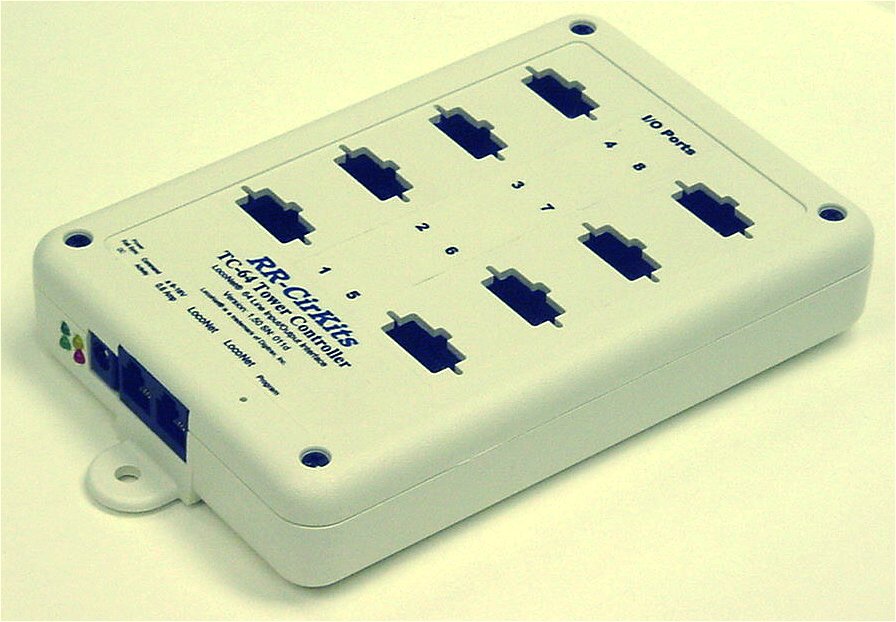

TC Mark II
TC Mark II
(Tower Controller Mark II)  64 line I/O controller, configured as 64 I/O lines. Each line may drive up to 15ma. at 4.5V when configured as an output and is equipped with 4.7K pull up resistors to allow use with contacts, open collector, or logic level circuits when configured as an input. Includes connectors and LocoNet® cable. Manual. $134.38 $120.94 $114.22
LNCP
Special Order Only
Image of LNCP This single board includes all the inputs and outputs necessary to signal a complete passing siding. The LNCP communicates over the LocoNet® compatible serial port with other LNCP units or other LocoNet® compatiple devices and operates with layout control software such as JMRI and RR&Co. via the LocoBuffer-USB. Accepts optional input or output modules for added capability.
14' LocoNet® compatible cable included. Use FOB-B at signal heads for easy connections. Manual

$Call

MotorMan-II
Currently unavailable being upgraded to MotorMan-III
Image of MotorMan This board includes outputs to drive up to 8 turnouts. (stall motor, gear motor only) The MotorMan communicates over the LocoNet® compatible Simple Serial Bus to other LocoNet® compatiple devices and operates with layout control software such as JMRI and RR&Co. via the LocoBuffer-USB, or else it connects directly to the DCC bus as an accessory decoder Manual
$?? $??
$??
TAB-2
TAB-2
Tortoise Adapter Board - 2 position. The TAB-2 is a quick wiring connector for the Tortoise Slow Motion Switch Machine. It is composed of a properly designed edge connector* that fits tightly onto the Tortoise paddle, two daisy chained 10 pin IDC connectors, and an 8 position wiring block for wiring up the Tortoise contacts to frogs or auxilary inputs. (*note: not the sloppy fitting blue Chinese connectors used by many others)
$14.60
$13.14
$12.41
SignalMan-C Image of SignalMan-C This board includes outputs to drive up to 16 signal LEDs. The SignalMan-C (Compression Connectors) communicates over the LocoNet® compatible Simple Serial Bus to other LocoNet® compatiple devicesand operates with layout control software such as JMRI and RR&Co. via the LocoBuffer-USB, or else it connects directly to the DCC bus as an accessory decoder. Compression connectors included. Manual
$41.24 $37.12
$35.06
SignalMan-P Image of SignalMan-P This board includes outputs to drive up to 16 signal LEDs. The SignalMan-P (Pin Connectors or IDC Plug) communicates over the LocoNet® compatible Simple Serial Bus to other LocoNet® compatiple devices and operates with layout control software such as JMRI and RR&Co. via the LocoBuffer-USB, or else it connects directly to the DCC bus as an accessory decoder. Female pin connectors and shrink wrap included. Manual $34.93 $31.43 $29.69
SignalMan-S SignalMan-C
This board includes outputs to drive up to 16 signal LEDs. The SignalMan-S (Screw Terminals) communicates over the LocoNet® compatible Simple Serial Bus to other LocoNet® compatiple devices and operates with layout control software such as JMRI and RR&Co. via the LocoBuffer-USB, or else it connects directly to the DCC bus as an accessory decoder. Manual $41.58 $37.42 $35.35
TowerMan Image of TowerMan The TowerMan includes 16 I/O lines. The TowerMan is a 16 line controller configured as 2 eight line ports. The TowerMan is compatible with any of the RR-CirKits I/O modules shown below. Each line may drive up to 15ma. at 4.5V when configured as an output and is equipped with 4.7K pull up resistors to allow use with contacts, open collector, or logic level circuits when configured as an input. If required, each line of the 16 may be individually configured as an input or output. Includes connectors. Manual $31.95 $28.75
$27.15
WatchMan Image of WatchMan The WatchMan includes 8 block detectors and 8 I/O lines. The WatchMan is a 16 line controller configured as 1 eight line port and 8 detection circuits. The WatchMan is compatible with any of the RR-CirKits I/O modules shown below. Each I/O line may drive up to 15ma. at 4.5V when configured as an output and is equipped with 4.7K pull up resistors to allow use with contacts, open collector, or logic level circuits when configured as an input. Detection uses 100:1 CT coils. (sold seperately) Manual $51.34 $46.20
$43.64
SSB-Adapter Image of SSB Adapter The SSB Adapter ties together 2 LocoNet jacks, one Simple Serial Bus terminal, and a power supply. The SSB Adapter is for use with an existing LocoNet® when used on a Digitrax DCC system or to extend a stand alone LocoNet®. It provides an easy way to connect to,  or to add additional power to the SSB. PS-S-15-700 universal switching power supply and 5' LocoNet® compatible cable are included.
$19.95 $17.96
$16.96
SSB-Gateway Image of SSB Gateway The SSB Gateway ties together 4 LocoNet jacks, two Simple Serial Bus plugs, and a power supply. The SSB Gateway optionally supplies the required LocoNet® 15ma. pull up and DC power to the RailSync lines for a stand alone LocoNet® when used on DCC systems other than Digitrax. It provides an easy point to connect a LocoBuffer-USB to interface the SSB to a computer. PS-S-15-1200 universal switching power supply and 5' LocoNet® compatible cable are included.
$35.95 $32.36
$30.55

Accessories:

Item #
Description
MSRP
1-3
4+
3TK2-1


(I/O board not included)

(Single Position Mounting Track) This plastic mounting track is suitable for mounting a single I/O module to a flat surface. (3 1/2" x 2")
$2.90
$2.61

$2.47

3TK2-2


(I/O boards not included)

(Dual Position Mounting Track) This plastic mounting track is suitable for mounting two I/O modules to a flat surface. (3 1/2" x 4")
$5.80
$5.22

$4.93

3TK2-2W

(Dual Position Wide Spaced Mounting Track) This plastic mounting track is suitable for mounting two I/O modules to a flat surface with extra wiring space between modules. (3 1/2" x 5") $7.25 $6.53 $6.16
3TK2-3
(Three Position Mounting Track) This plastic mounting track is suitable for mounting three I/O modules to a flat surface. (3 1/2" x 6") $8.70 $7.83 $7.40
3TK2-3W
(Three Position Wide Spaced Mounting Track) This plastic mounting track is suitable for mounting three I/O modules to a flat surface with extra wiring space between modules. (3 1/2" x 8") $11.60 $10.44 $9.86
3TK2-4

(I/O boards not included)
(Quad Position Mounting Track) This plastic mounting track is suitable for mounting four I/O modules to a flat surface. (3 1/2" x 8")
$11.60
$10.44

$9.86

3TK2-4W

(I/O boards not included)
(Quad Position Wide Spaced Mounting Track) This plastic mounting track is suitable for mounting four I/O modules to a flat surface with extra wiring space between modules. (3 1/2" x 11")
$15.95
$14.36

$13.57

3TK2-6
(Hex Position Mounting Track) This plastic mounting track is suitable for mounting six I/O modules to a flat surface. (3 1/2" x 12") $17.40 $15.66 $14.79
CAB-10x100
(10 conductor flat ribbon interface cable) 100' rolls, #28 AWG gray with red stripe on line one. Used to connect any daughter cards to the Tower Controller, TowerMan, or LNCP boards. Also used to connect signals to the 4ASD-4 board, LNCP, SignalMan-P, or to the Tower Controller. Cable is heavy and will incur extra cost for shipping.
Note: We now offer cut cable lengths to those customers that don't require full rolls.

$35.95

100'
$32.36

400' +
$30.56/100'
IDC-S10x25
(10 position IDC socket) Box of 25 Insulation Displacement Connectors for use with 10 wire flat ribbon cable.
$7.95
$7.16
$6.76
6P6C-5
5 Jacks, 6 Position, 6 Conductor, (6P6C) modular jack with 6' cord and plug. Straight through wiring. Screw mounting flanges for easy under layout or fascia mounting. Use to extend your modular control bus and provide easy taps for those extra devices.
$6.95
$6.26
$5.91
PS-S-12-500
PS-S-12-500

12V DC 500ma. Power Adapter (500mA Output, 100-240V AC Input, 2.1mm ID / 5.5mm OD) - Regulated output. This high quality regulated switching power adapter powers any 12 Volt DC device up to 1/2 amp. Current limited for protection, will not supply higher power devices or large capacitve surges.

$9.50
$8.55
$8.07
PS-S-12-800 PS-S-12-800
12V DC Power Adapter (800mA Output, 100-240V AC Input, 2.1mm ID / 5.5mm OD)

This high quality regulated switching power adapter powers any 12 Volt DC device up to 800 ma. Made with quality in mind, this unit will outperform similar products. Let RR-CirKits keep your devices powered on and working great with our professional grade power supplies. Current limited for protection, will not supply higher power devices or large capacitve surges.

The latest Slimline design allows adapters to fit side by side on a plug strip. Light weight and small size.

$10.95 $9.85 $9.30
PS-S-15-1200 PS-S-15-1000
15V DC Power Adapter (1200mA Output, 100-240V AC Input, 2.1mm ID / 5.5mm OD)

This high quality regulated switching power adapter powers any 15 Volt DC device up to1.2 Amp. Made with quality in mind, this unit outperforms similar products. Let RR-CirKits keep your devices powered on and working great with our professional grade power supplies. This constant power output supply is designed to start up reliably even under large capacitive loads.

The latest Slimline design allows adapters to fit side by side on a plug strip. Light weight and small size.


$12.00
$10.80 $10.20
SS-RGY-24
SS-RGY-24 This RGY LED is provided with four 24" long color coded #36 AWG wires. It may be fitted in place of a common T-1 LED with room to spare. The LED provides the three standard searchlight signal colors and is wired the same as a normal three light signal head would be. (common anode connection) (dime not included)  More Info $3.95 $3.56 $3.36


To Order


Last updated  23 June 2018
